Proel · Sound Systems

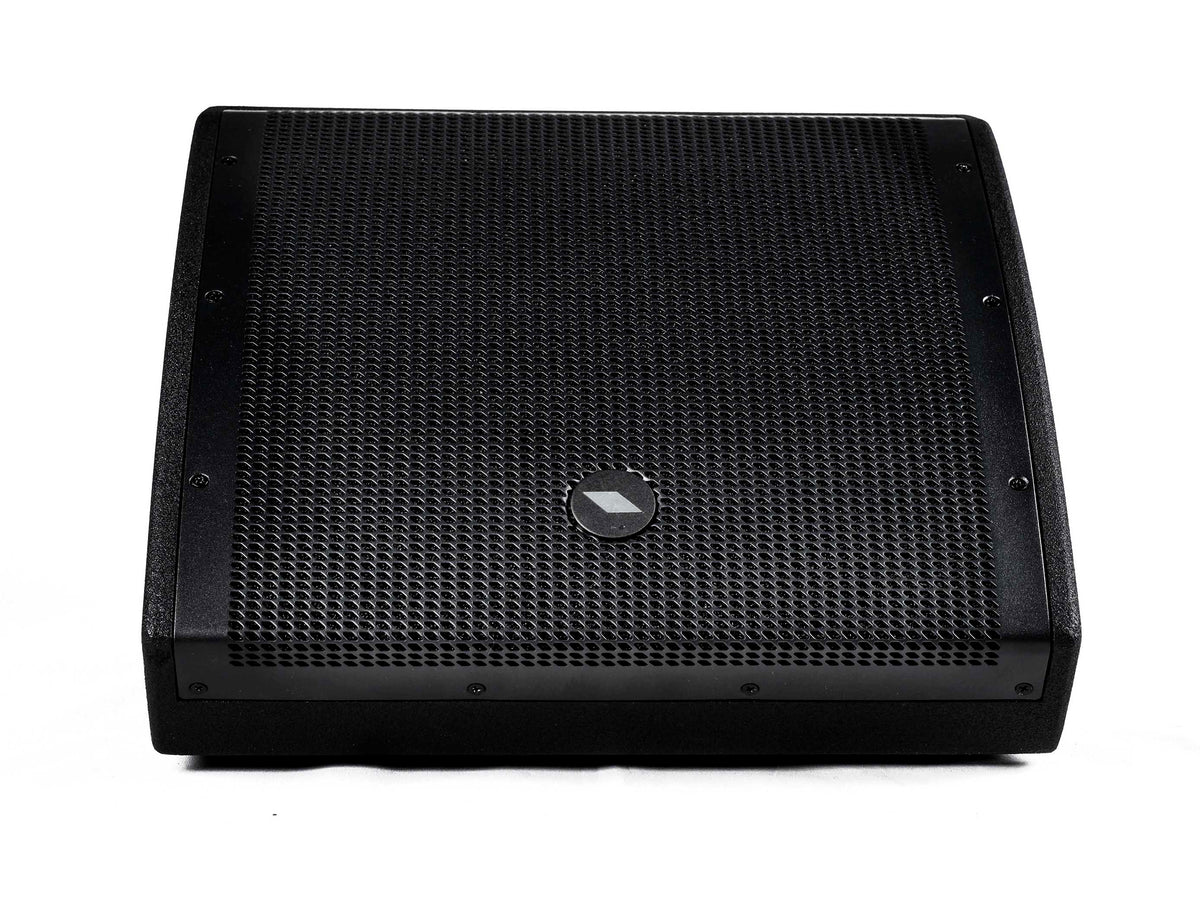

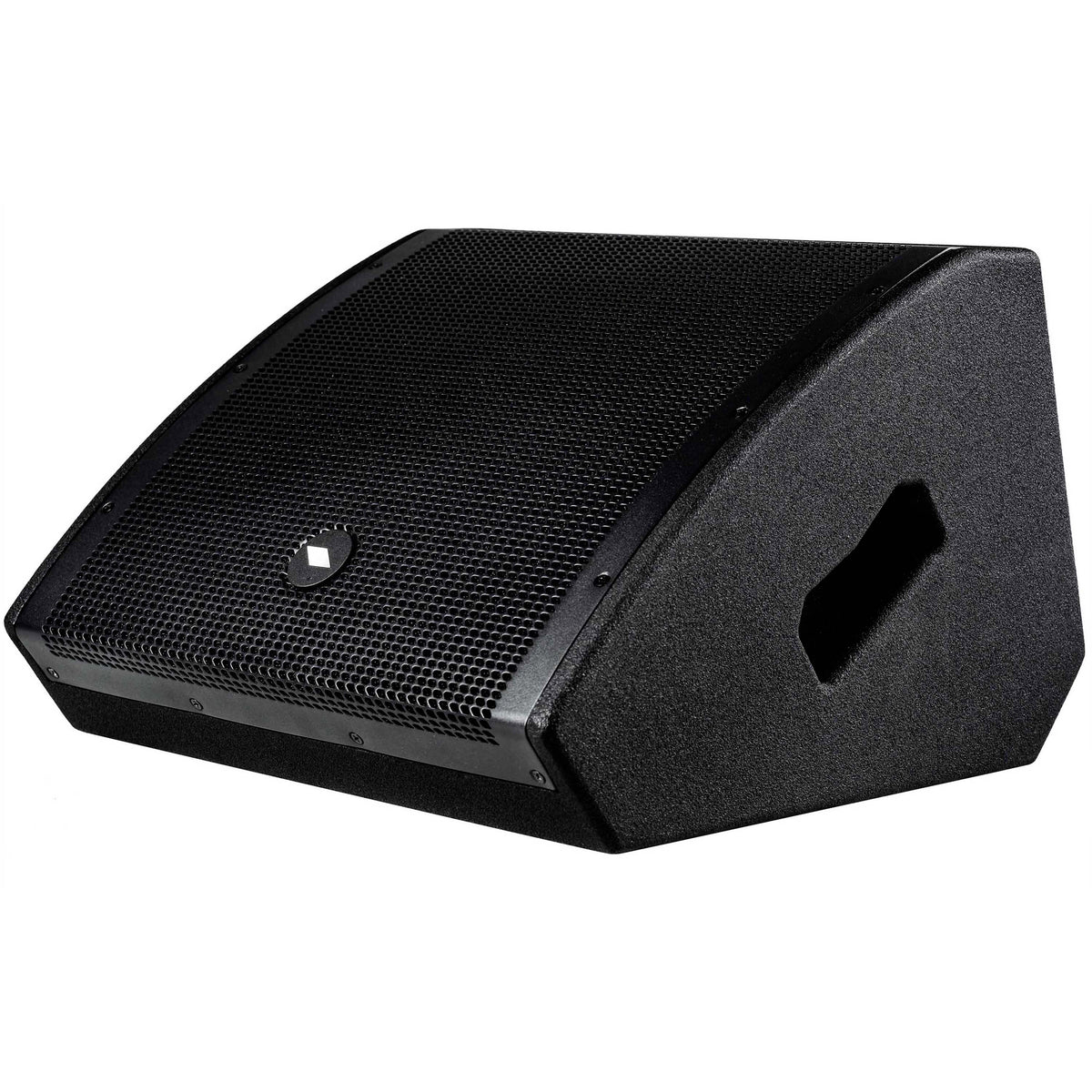

WX Series Active 2-Way Coaxial 10" Stage Monitor

Item WX10A · Designed in Italy

The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have...

Where to buy

Sold through authorized Proel North America dealers in the USA and Canada.

Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage. The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse. The lightweight 500W CLASS D amplifier module with SMPS provides a high output that results in an unexpected SPL for such small loudspeakers.


The sophisticated analogue processing provides a detailed response, particularly in the vocal range, and a remarkable resistance to feedback. Two EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH) if necessary. The WX monitors are available in two models, offering the right solution for different monitoring situations. The ultra-compact WX8A can provide a high-quality monitoring also in very small spaces and it can give its best with speech, vocals and acoustic instruments. WX10A, with a higher SPL and a full-range response, is ideal for vocals, guitar, horns and electronic instruments or as a monitor for DJs.

Specifications

The details that matter.

Manuals & downloads

System type
2-way coaxial vented stage monitor
Low Frequency Device
10” woofer with 2"VC
High Frequency Device
1” compression driver with 1"VC
Angular Coverage
60°
Frequency response
70 Hz - 20 kHz
Max SPL at 1mt (peak)
123 dB
Amplifier Continuous Power
250W CLASS D with SMPS
Input Impedance
30 kΩ balanced, 15 kΩ unbalanced
Input Sensitivity
-10 dBu

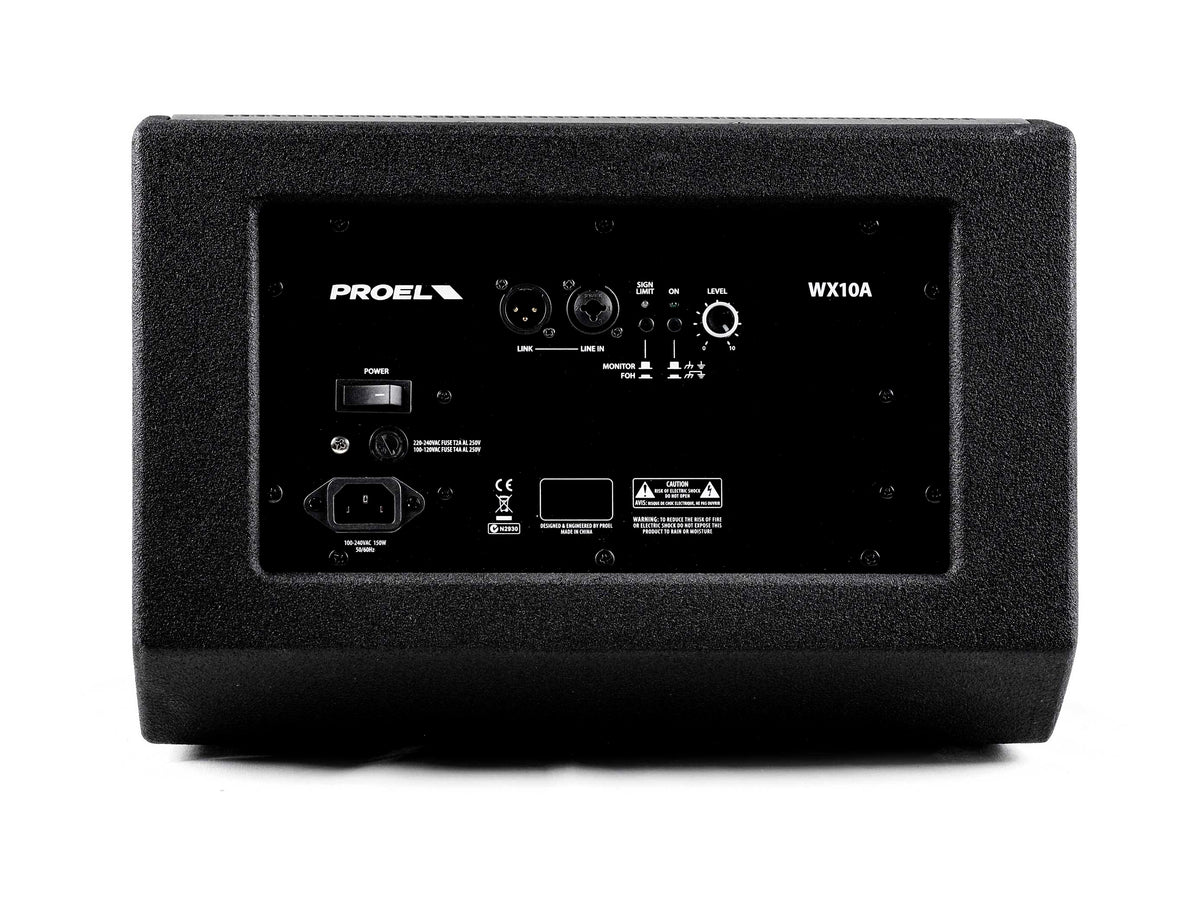

Controls
LEVEL, PRESET selector (MONITOR, FOH), GND lift
Connectors
INPUT: COMBO (XLR-F/JACK), LINK: XLR-M
Power Supply
230 VAC or 115 VAC - 50/60 Hz
Rated Consumption*
200 W
Construction
MDF with black anti-scratch polyurethane paint

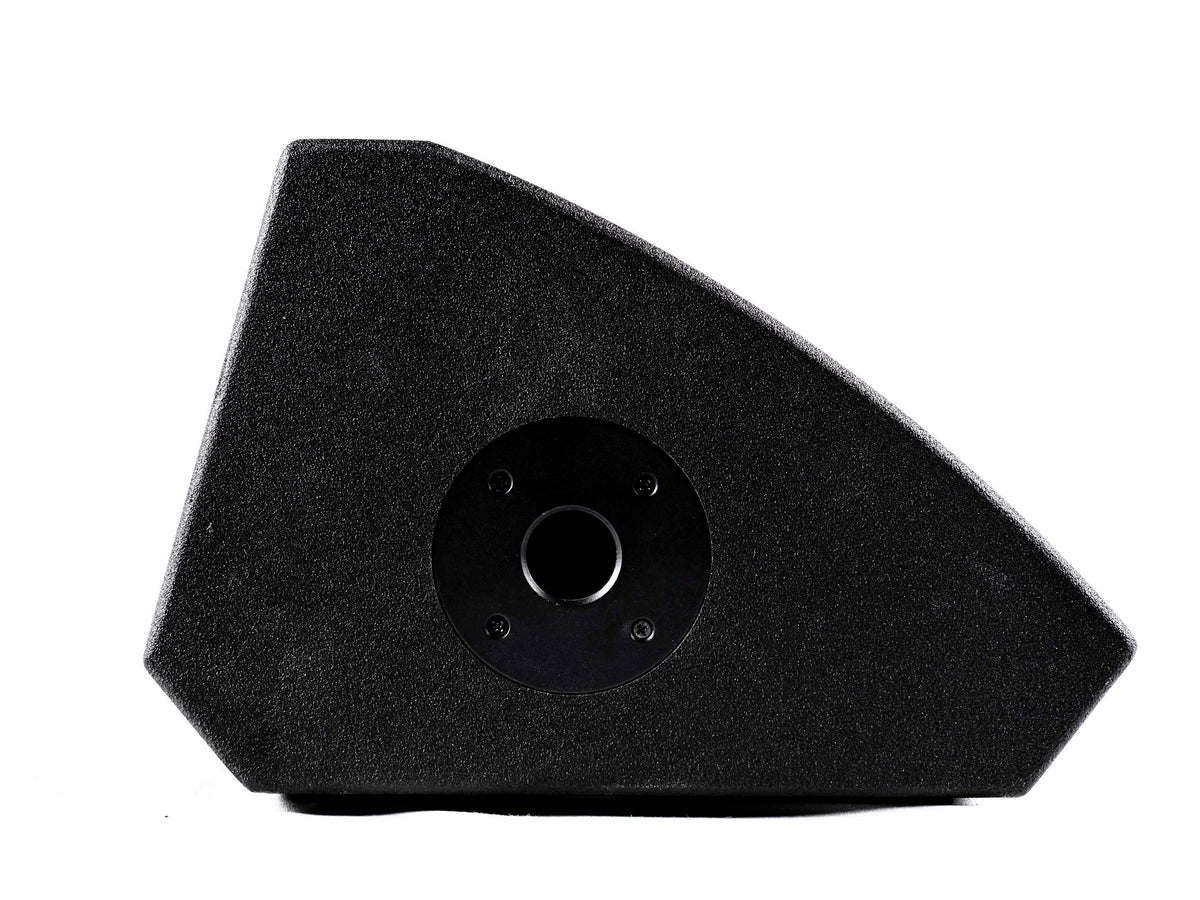

Pole Adapter
1 x side

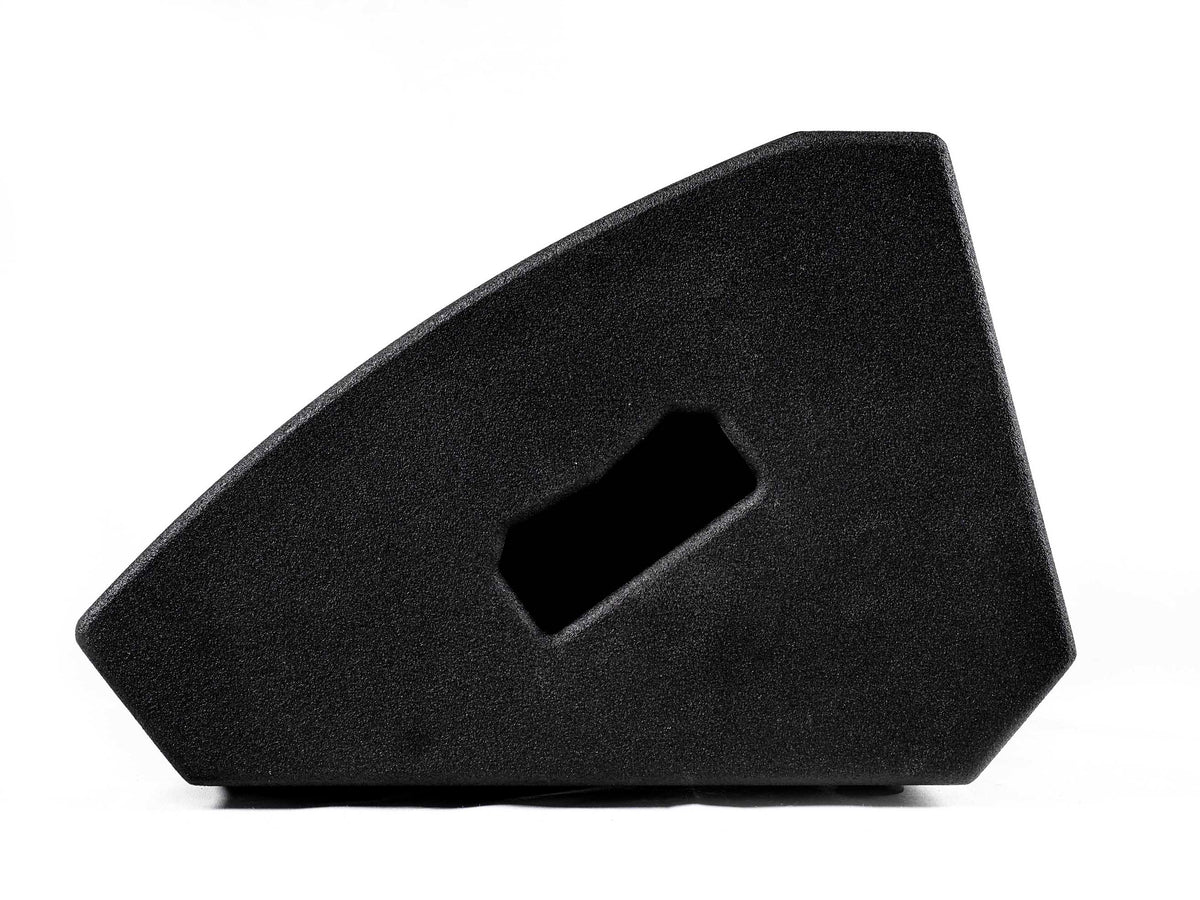

Handles
1 x side
Monitor taper
36°
Weight
22 lb (10 kg)
Dimensions (W x H x D)
15.4 × 15.6 × 10.6 in (390x396x270 mm)
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
