• Eikon EKSBIPOD Audio Interface USB 192KHZ Portable

Eikon · Recording Gear

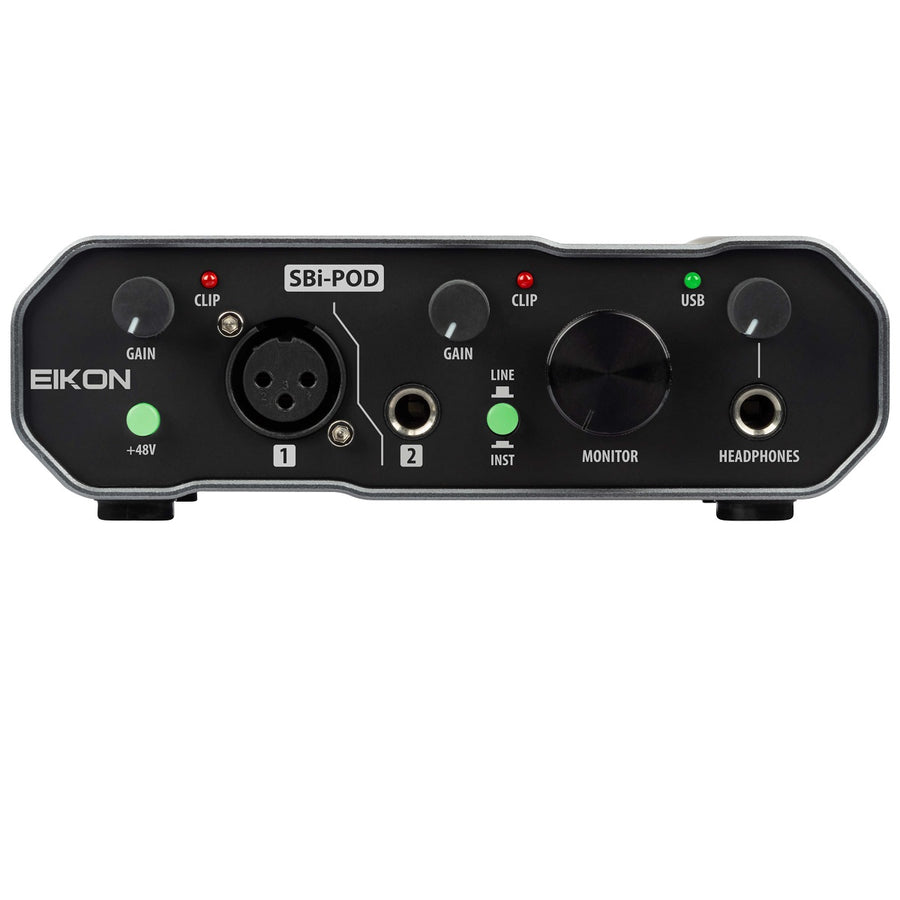

Audio Interface USB 192KHZ Portable

Item EKSBIPOD

SBi-POD is an USB audio interface designed to offer studio quality for home or mobile recording, live stream or podcasting. Utilizing high-grade components, premium circuitry and a compact and rugged design, it provides a full set of features and top performances for musicians, songwriters content...

Where to buy

Sold through authorized Proel North America dealers in the USA and Canada.

Dealer? Sign in to see your cost and order. School, worship or facility? Request a quote.

Details

About this product.

SBi-POD is an USB audio interface designed to offer studio quality for home or mobile recording, live stream or podcasting. Utilizing high-grade components, premium circuitry and a compact and rugged design, it provides a full set of features and top performances for musicians, songwriters content creators and podcasters.

  • One XLR input and one TRS inputs with HI-Z switch for recording vocals and instrument together
  • High-definition MIC preamp with extended dynamic range and 48V phantom power
  • 2-in + 2-out high-resolution 24-bit/192 kHz USB2.0 interface for a flawless audio quality
  • Zero-latency DIRECT MONITORING with STEREO/MONO selector
  • Analog outputs for connecting studio monitors
  • Headphones output with separate level control
  • Minijack AUX input/output for recording or podcasting applications directly on tablet or smartphone
  • REC SOURCE selector
  • USB bus powered for easy mobile recording (Type-B and Type-C connectors)
  • Rugged, road-proof aluminum chassis for maximum protection

Specifications

The details that matter.

Manuals & downloads

Microphone Preamp

Type
XLR female, balanced
Frequency Response (±3.0 dB)
10 Hz to 22 kHz
Input Impedance (Balanced)
1.32 kΩ
Gain Control Range (± 1 dB)
0 dB to 40 dB
Phantom Power (±2 VDC)
+48 VDC

Line Input

Type
JACK ¼" TRS female, balanced
Input Impedance
15 kΩ

Instrument Input

Type
JACK ¼" TS female, unbalanced
Input Impedance
1 MΩ

Line Outputs

Output Impedance
600Ω

Headphone Output

Type
JACK ¼" TRS active stereo
Maximum Output
50 mW/ch. @ 32Ω Load
Frequency Response (±1.0 dB)
10 Hz - 25 kHz

Digital Audio

Bit Depth
16 / 24 /32
Reference Level for 0 dBFS
+14 dBu
Power
USB bus-powered

Physical

Height
52 mm (2.05")
Depth
106 mm (4.17")
Width
160 mm (6.30")
Weight
0.53 kg (1.17 lbs)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
