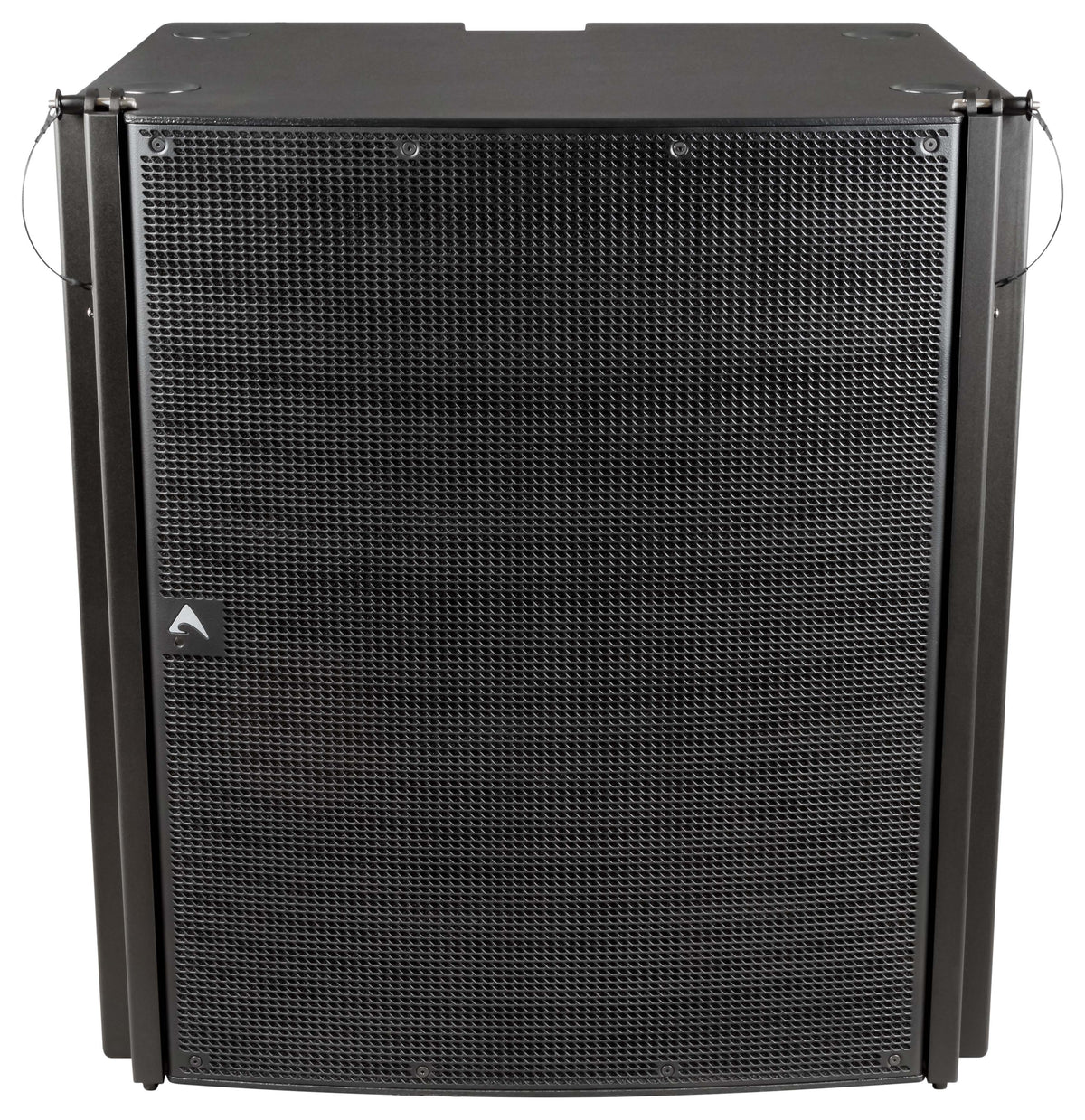

• Axiom SW36XFP Dual 18" Passive, Very High-Output, Manifolded Bandpass, Flyable Subwoofer (Black)

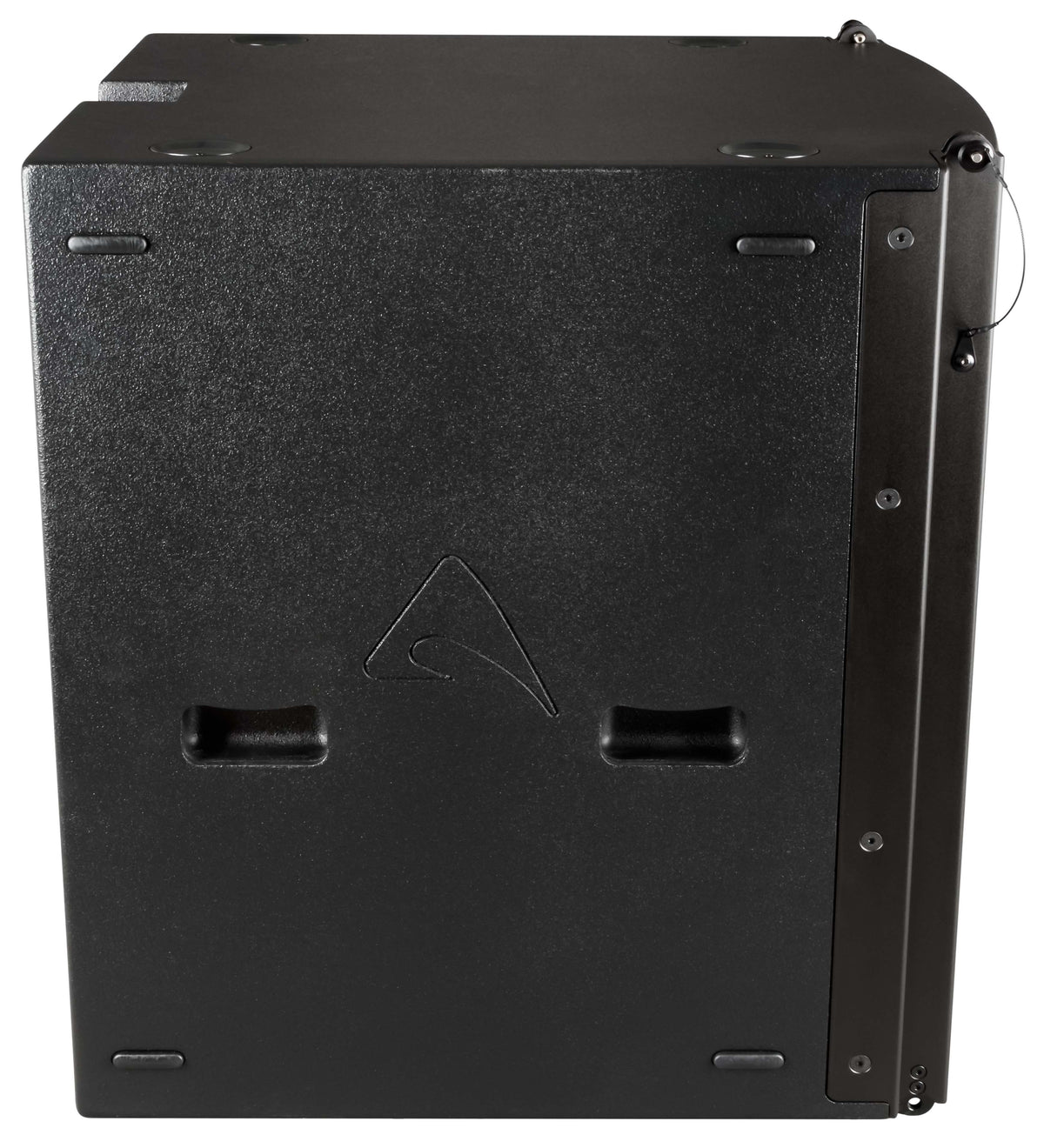

  • Axiom SW36XFP Dual 18" Passive, Very High-Output, Manifolded Bandpass, Flyable Subwoofer (Black) – view 2

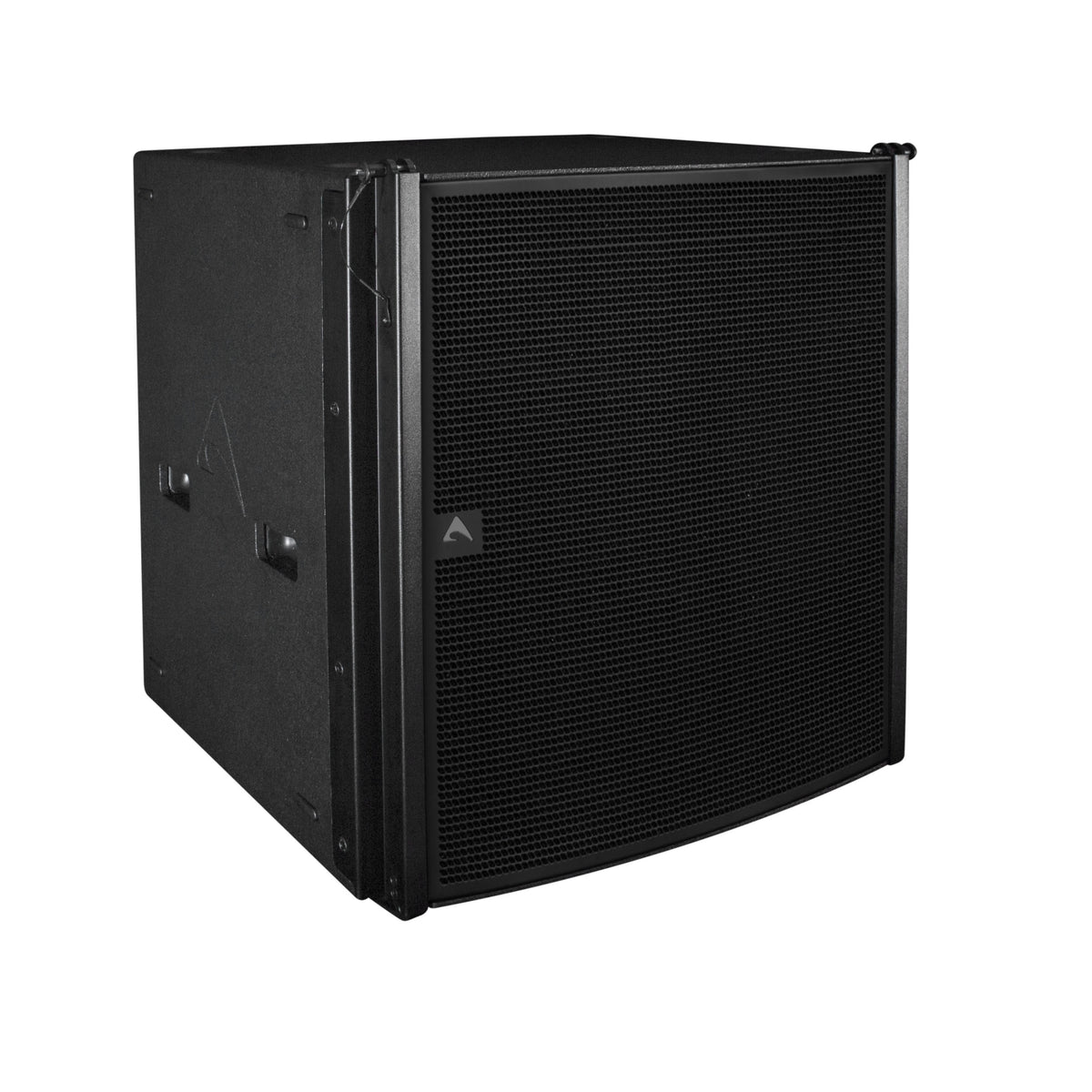

  • Axiom SW36XFP Dual 18" Passive, Very High-Output, Manifolded Bandpass, Flyable Subwoofer (Black) – view 3

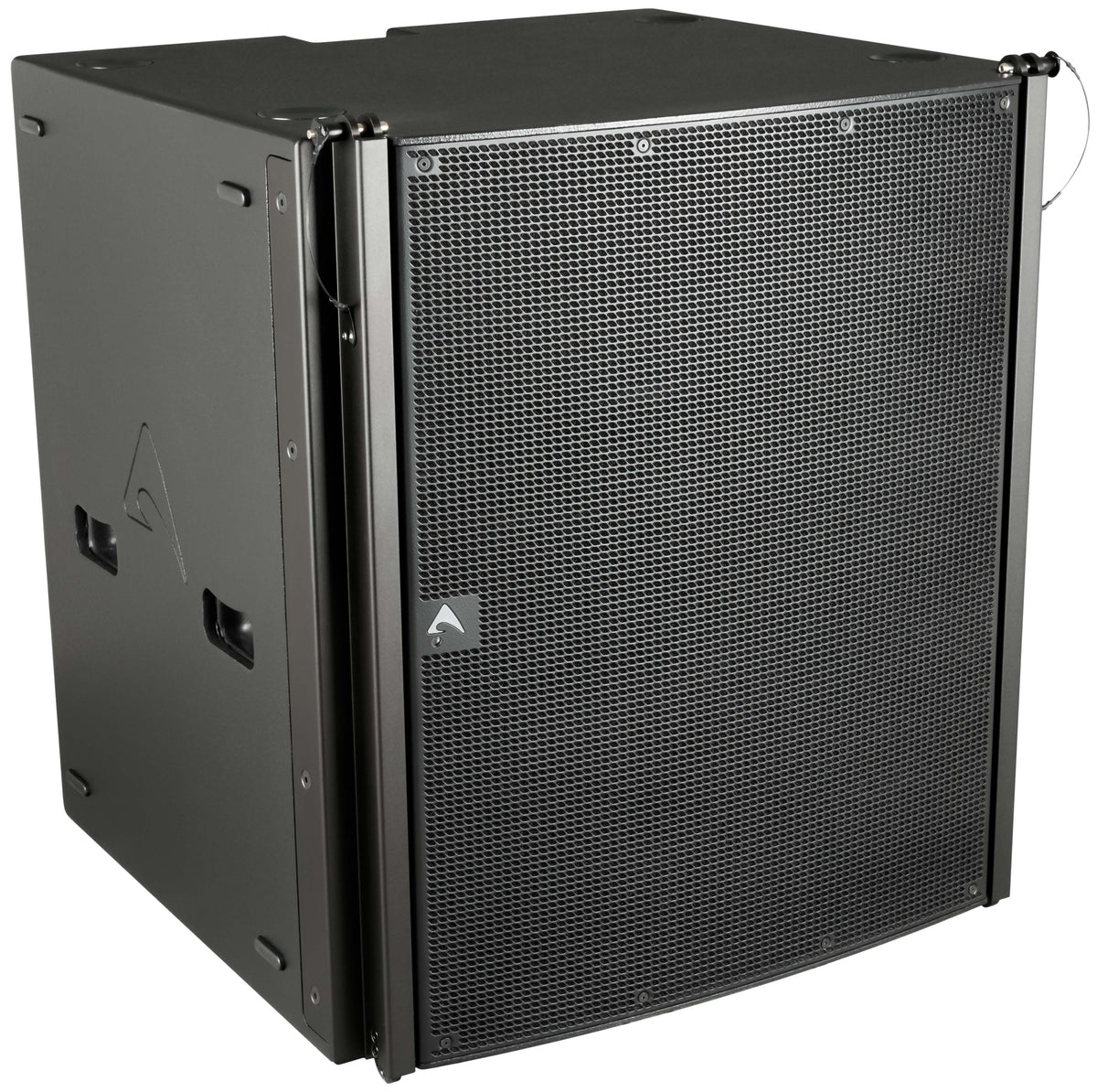

  • Axiom SW36XFP Dual 18" Passive, Very High-Output, Manifolded Bandpass, Flyable Subwoofer (Black) – view 4
  • Axiom SW36XFP Dual 18" Passive, Very High-Output, Manifolded Bandpass, Flyable Subwoofer (Black) – view 5
  • Axiom SW36XFP Dual 18" Passive, Very High-Output, Manifolded Bandpass, Flyable Subwoofer (Black) – view 6

Axiom · Stage Equipment

Dual 18" Passive, Very High-Output, Manifolded Bandpass, Flyable Subwoofer (Black)

Item SW36XFP · Made in Italy

A passive, flyable dual-18 in subwoofer with Tetracoil drivers that rigs atop Axiom AX2010P arrays for 143 dB peak output.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

The SW36XFP is designed to fly with AX2010P line array modules, with usable response down to 36 Hz. At the top of the array, its integrated rigging mates with the AX2010P. Its curved grille matches the AX2010 for a neat, unobtrusive cluster.

Manifold and bandpass loading reach 143 dB peak output from a compact cabinet. Two 18 in drivers use 4 in Tetracoil dual voice coils, equivalent to a single 6 in voice coil.

Specifications

The details that matter.

Manuals & Downloads

Version
Passive (needs an external amplifier). The P in the model number means Passive; the active version is SW36XFA.
SYSTEM
System’s Acoustic Principle
Manifolded Band Pass
Frequency Response (±3dB)
36 Hz - 100Hz (Processed)
Frequency Range (±10dB)
28 Hz - 300Hz (Unprocessed)
Nominal Impedance
8 Ω + 8 Ω
Maximum Peak SPL @ 1m
143 dB
TRANSDUCERS
Type
Two 18” (460mm), 4” (100mm) VC
Cone
Water repellent cone and epoxy coated plates
Voice Coil Type
3.9 in (100mm) (4in) Tetracoil dual voice coil, equivalent to a single coil diameter larger than 6 in (152mm) (>6in)
Suspension
Ultra linear suspension behavior
INPUT CONNECTIONS
Connector Type
Neutrik® Speakon® NL4 x 2
Input Wiring
LF1 = Pin 1+/-; LF2 = Pin 2+/-
POWER HANDLING
Continuous AES Pink Noise Power
1800W + 1800W
Program Power
3600W + 3600W
Peak Power
7000W + 7000W
Power Compression
@ -10dB Power
0.6dB
@ -3dB Power
2.0dB
@ 0dB Power
3.4dB
ENCLOSURE & CONSTRUCTION
Width
29.3 in (74.5 cm)
Height
32.5 in (82.5 cm)
Depth
23.6 in (60 cm)
Depth Including Wheels
28.5 in (72.5 cm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Paint
High resistance, water based paint
Suspension system
Side Suspension
High Strength Steel with ¼ Fast Pin
Back Suspension
High Strength Steel with ¼ Fast Pin
Wheels
4 heavy-load 3.9 in (100mm) ø
Net Weight
192.7 lb (87.4 kg) without heavy duty wheels

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
