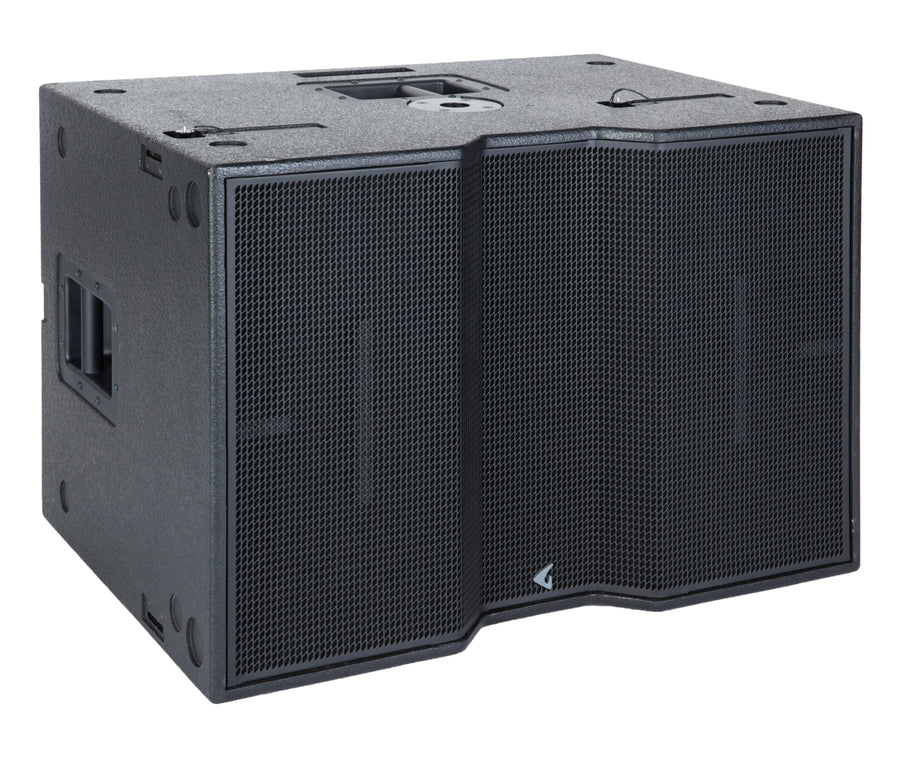

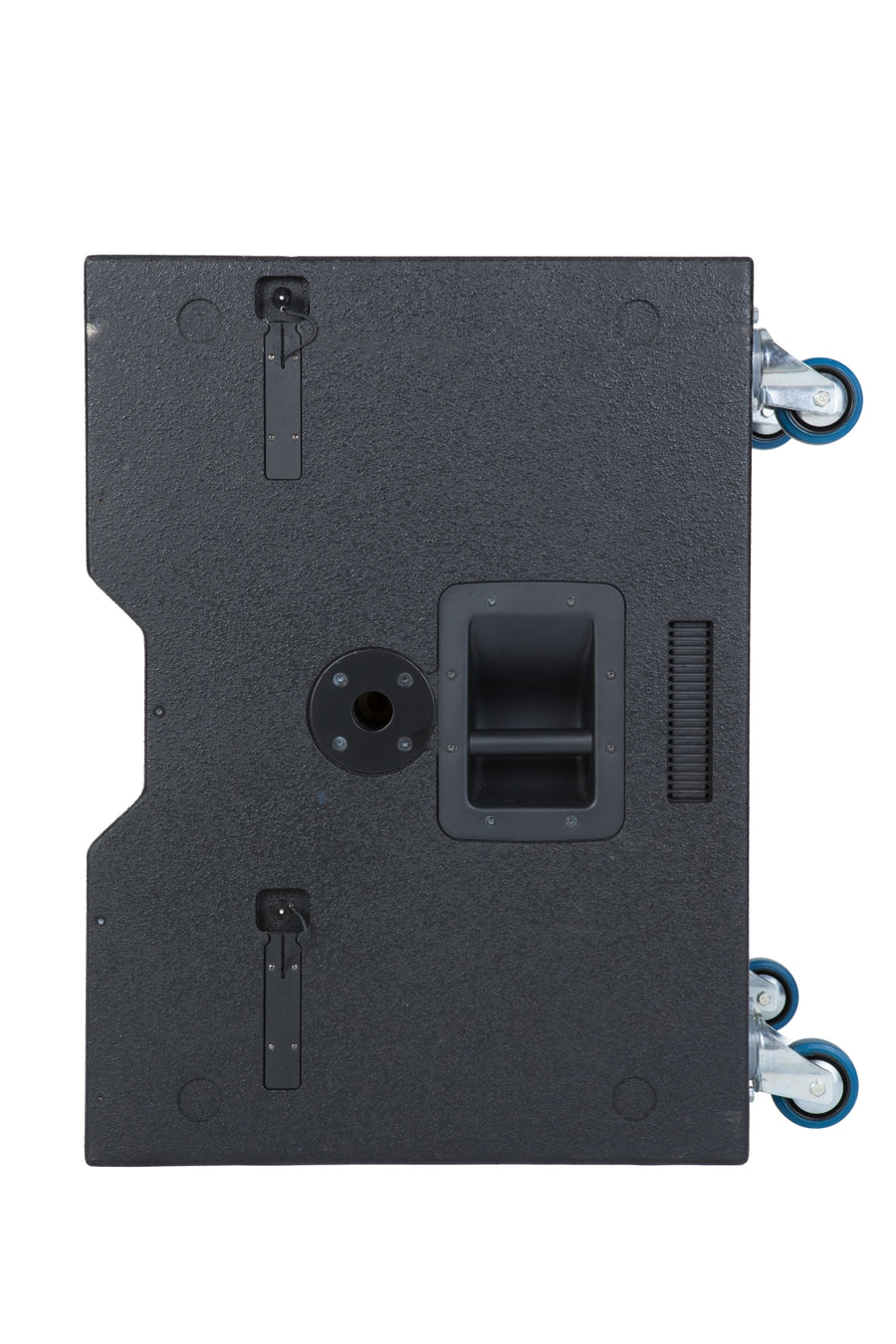

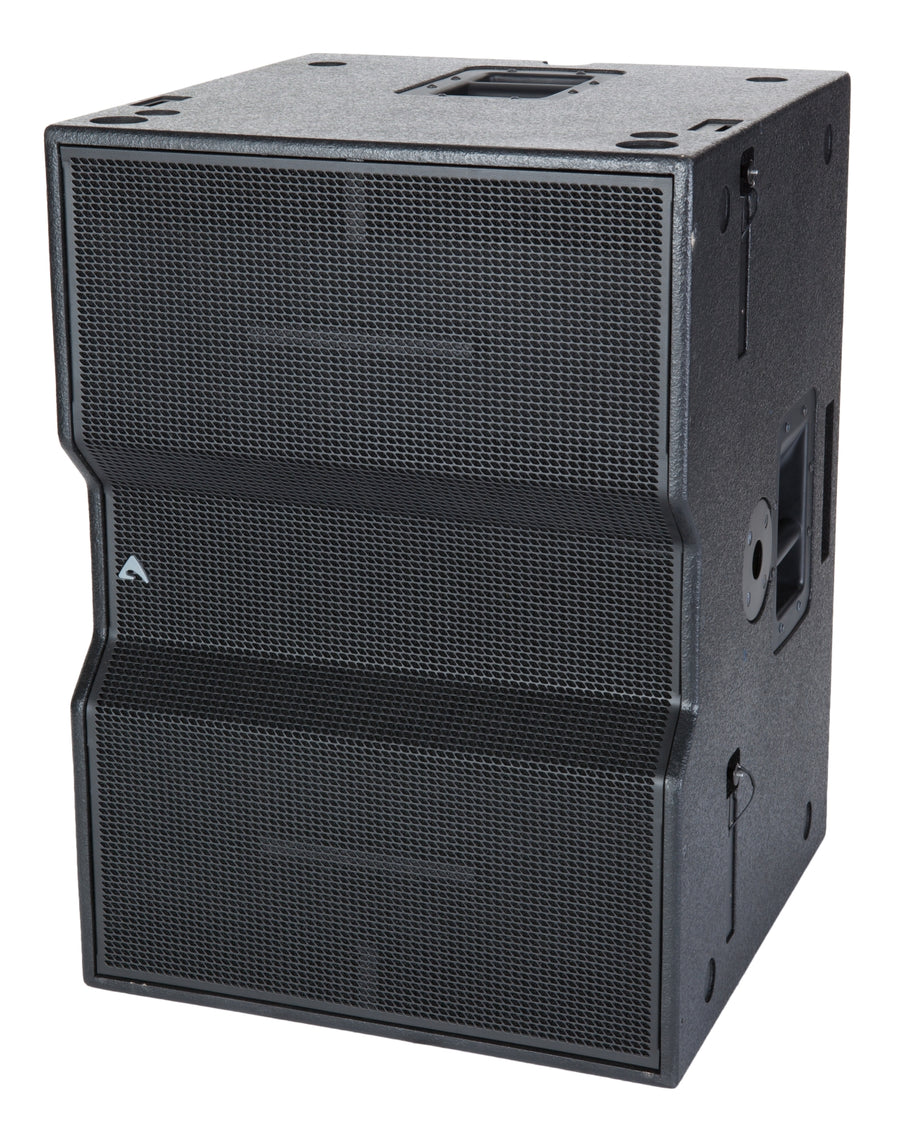

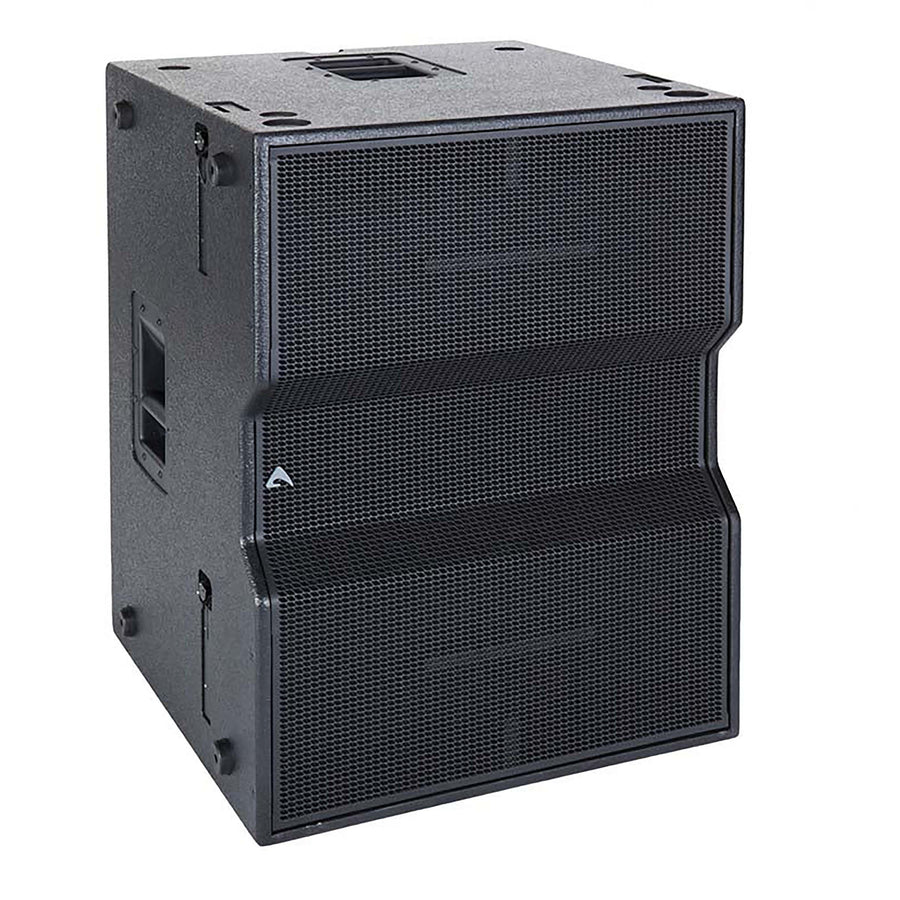

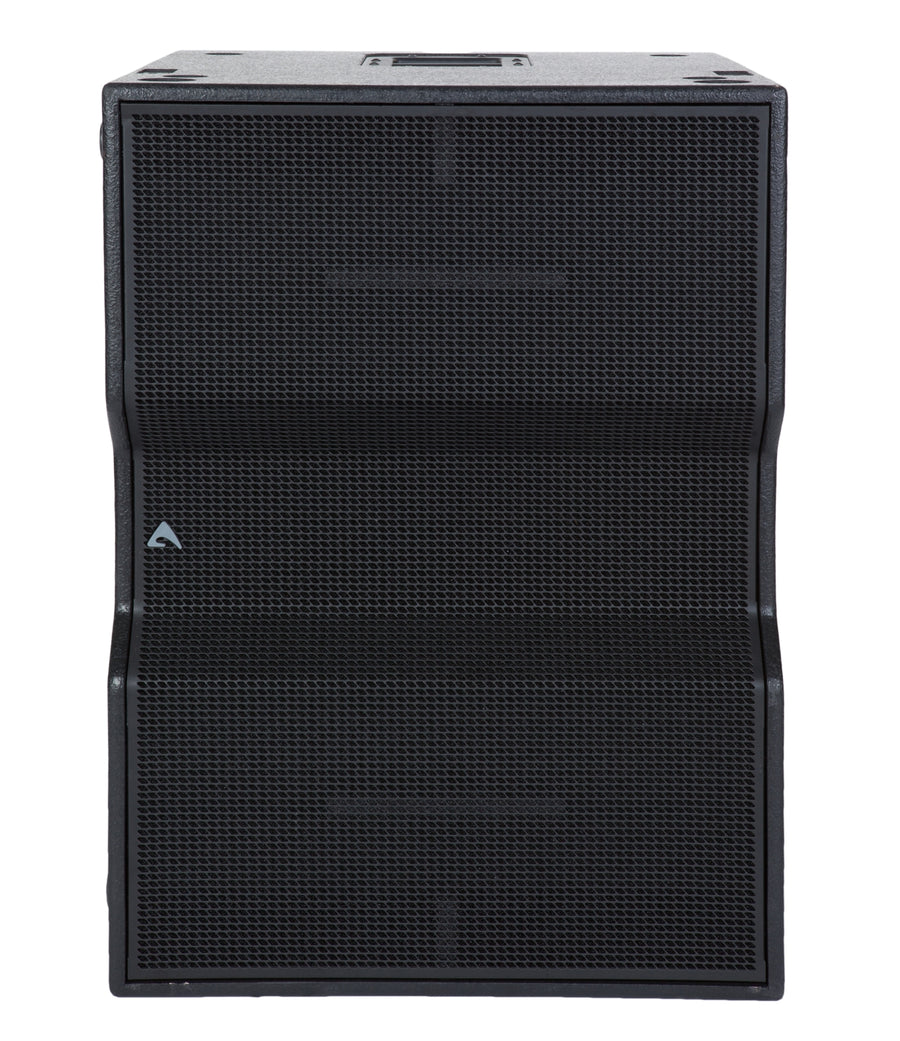

Axiom SW215P Dual 15" (380mm), Very High Output, Manifolded Band Pass, Subwoofer System
Already an Authorized Reseller? Sign InSKU: SW215P
The SW215P subwoofer is designed to deliver high quality low frequency reproduction where very high output is a key requirement, together with well defined deep bass response and fast transient response. Its compact size and light weight make it suitable for several different uses, ranging from touring applications to fixed installations and high-level dance clubs.
The SW215P is a very high quality subwoofer system featuring some of the most advanced technologies for low frequency reproduction. Its unique and innovative design is based on a configuration that can be defined as Manifolded Band Pass. It uses manifolding of the front side of the cones to maximize the mutual coupling between the two drivers. This innovative configuration does not use any large resonant cavity to load the speaker, but very compact cavities in order to obtain advantages in terms of definition, both at the lowest end and the upper bass.
The SW215P subwoofer system is equipped with two high power 15” (380mm) transducers capable of long excursion (up to 33mm peak-to-peak), controlled by high stiffness Double Silicon Spider as centering suspension and by heavy duty surround. The motor structure features high strength (BL²/Re) with optimized symmetry and excursion controlled by Inner Flux Demodulating Ring.
The robust copper 75mm (3”) voice coil is wounded in two different layers both outside and inside the coil support, then doubling the coil surface exposed to air cooling and consequently improving the long term thermal capacity of the loudspeaker.
Cones are made of very high-stiffness reinforced paper, featuring also invisible water repellent treatment.
The SW215P represents an innovative subwoofer design that features unprecedented performances in terms of low frequency definition and “punchy” feeling in the upper bass range. The combination of accuracy in acoustic transient response together with the use of latest technology in transducers linearity, signal processing and power amplifiers allows the SW215A to deliver unprecedented low frequency reproduction quality with solid deep end, together with very fast and accurate bass response.
- Very High Output
- Compact size for a very good output-to-weight ratio
- Manifolded Band Pass configuration for a high output in a compact size
- High-strength, water repellent cones
- Long-excursion split coil for extended linear response
