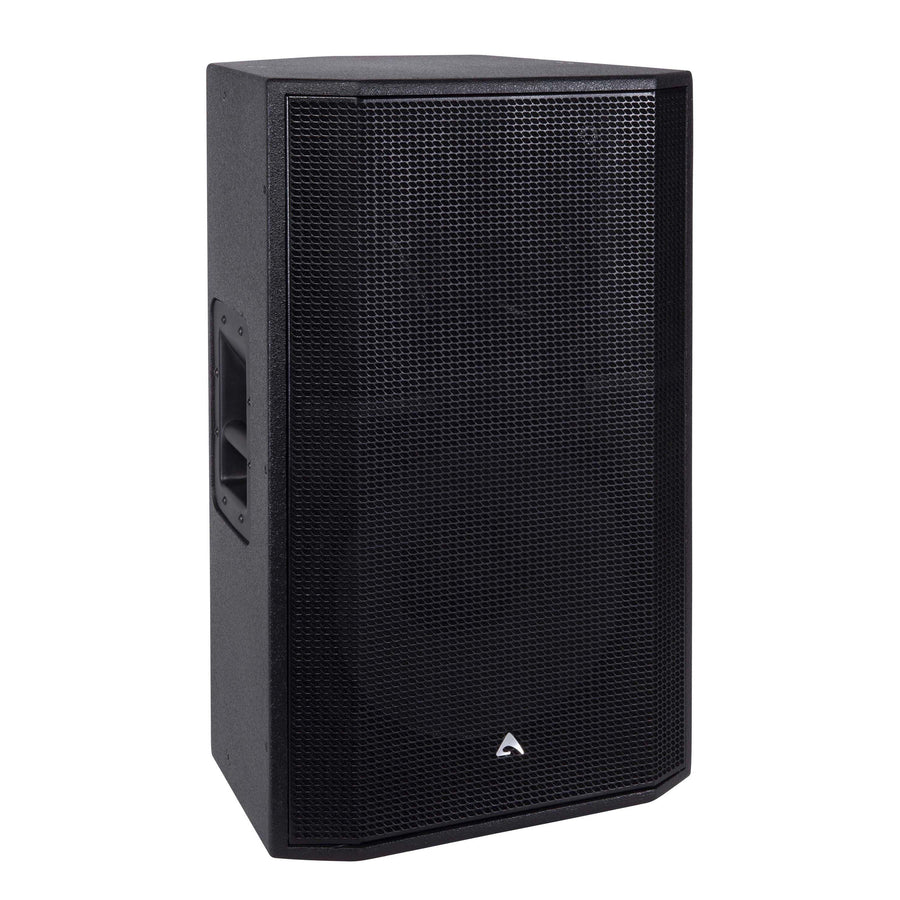

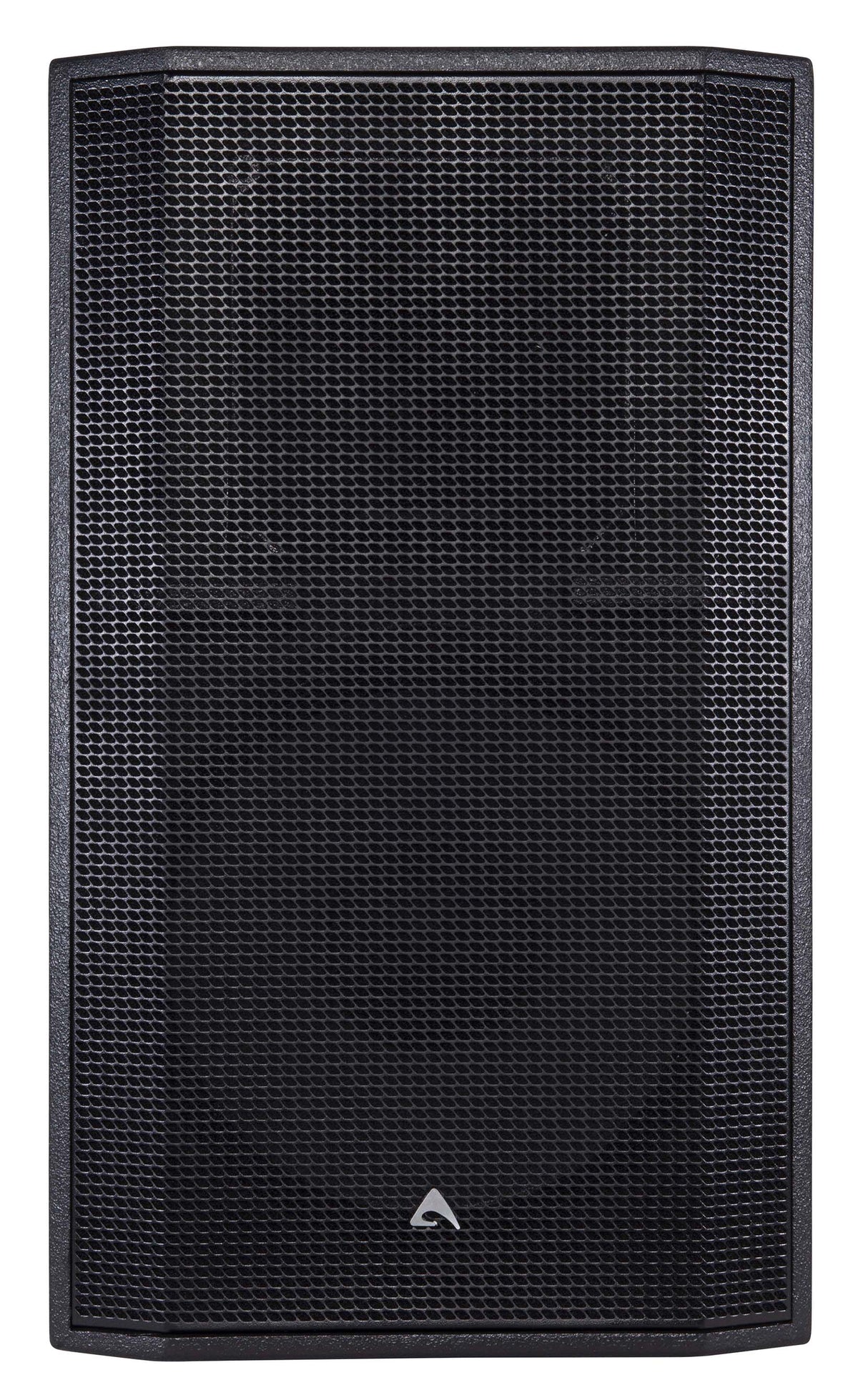

15" Passive, 2-Way, Full-range, Passive, Loudspeaker System (Black)

The ED150P is a compact, lightweight, two-way passive point source loudspeaker that provides full frequency response and controlled dispersion from an easily manageable enclosure. It is designed for many kinds of foreground sound reinforcement applications requiring high quality sound in an easily portable format.

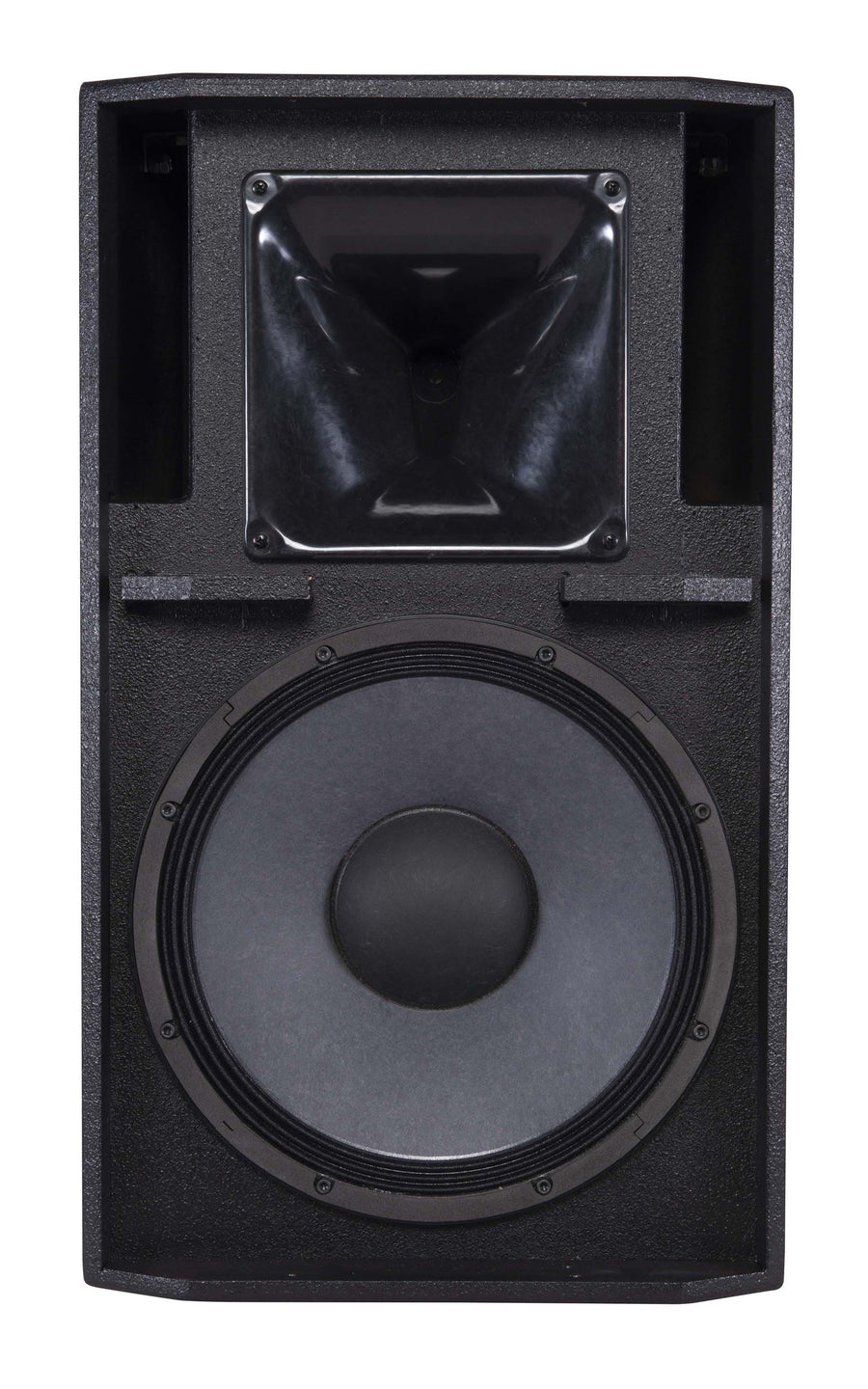

The 15” low frequency driver is matched to a 1.4” high frequency compression driver, both components using aluminum voice coils for low weight and good transient response, with an audiophile-grade passive crossover.

The ED150P’s non-symmetrical vented enclosure allows it to adapt to multiple portable and fixed applications, such as front-of-house duties on a speaker stand, or pole mounted on an associated subwoofer or, by using the 35° wedge angle, as a powerful stage monitor.

A key feature of the ED150P is its asymmetrical high frequency coverage pattern, varying from 100° horizontal in the lower part of the horn for more effective near field coverage, and narrowing to 60° horizontal at the top of the horn for more focused coverage in the far field. The result is more accurate coverage of a typical auditorium than is possible with a fixed horizontal coverage device. The HF horn is also rotatable through 90° by simply removing four screws and re-aligning the horn, so that in a stage monitor mode the asymmetrical pattern optimizes coverage for performers both near to, and further away from, the monitor. This rotatable horn feature also makes it possible to maintain the ideal coverage pattern when the cabinet is installed in a horizontal (landscape) format.

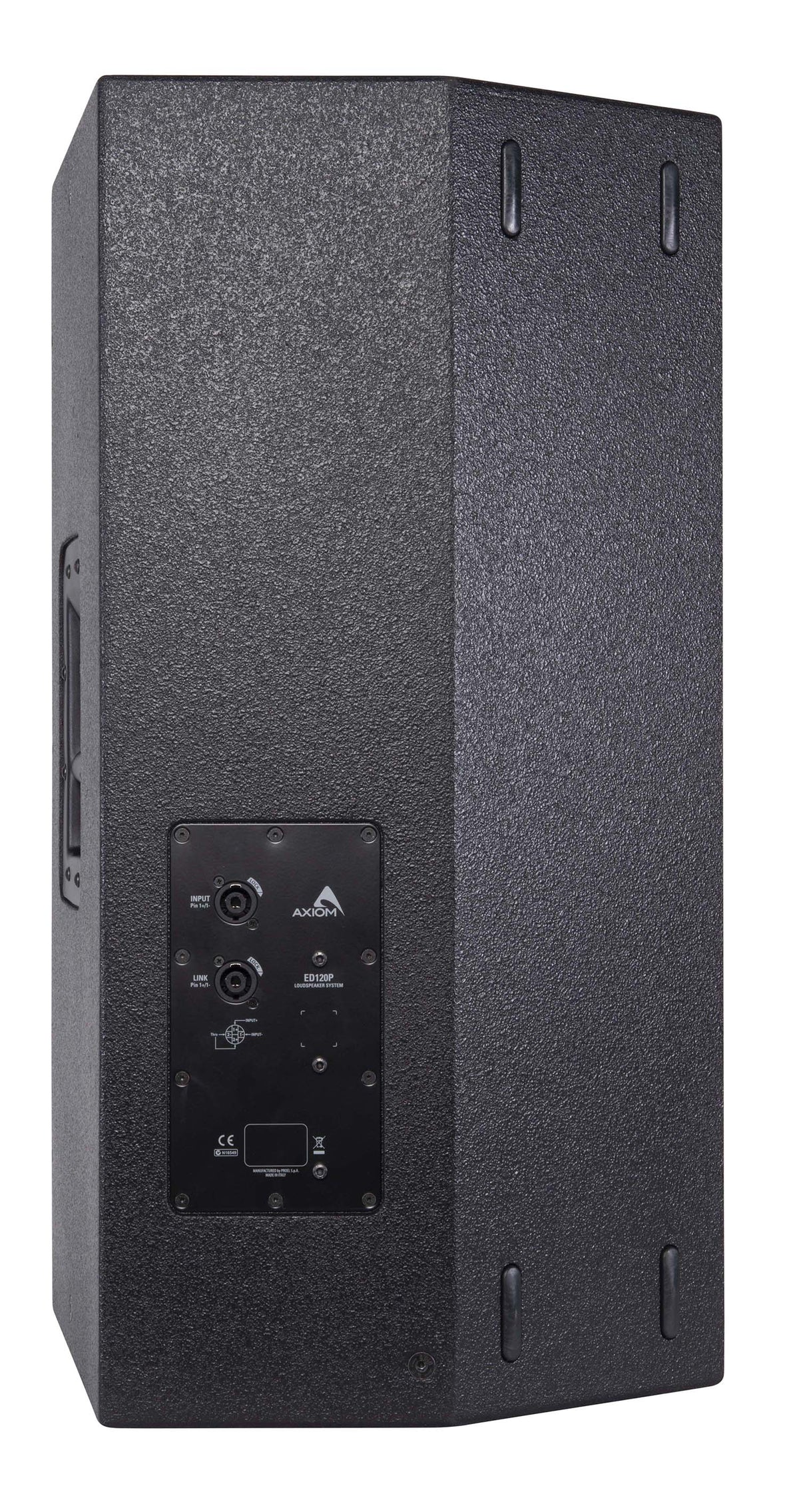

The 15mm phenolic birch plywood cabinet is provided with a 35mm pole mount, a recessed handle for easy lifting and handing, and M10 and M6 flying points to allow suspension in fixed installations using optional mounting brackets. Two Neutrik® speakON™ NL4 connectors provide input and link connections.

To extend the system’s low frequency response the ED150P can be complemented by subwoofers from the Axiom SW series such as the SW210P or SW18P.

MOUNTING AND FIXING

The ED150P can be wall mounted in permanent installations either vertically or horizontally using the KPTED150B wall bracket. The wall bracket allows five steps of incremental rotational adjustment to enable the loudspeaker to be accurately aimed. When mounted horizontally the loudspeaker’s asymmetrical HF waveguide can be rotated through 90° within the enclosure to maintain the optimum coverage pattern.

KEY FEATURES

• Passive two-way point source
• Compact lightweight enclosure
• 15” woofer, 1.4” HF compression driver
• Asymmetric HF coverage pattern
• Rotatable HF horn
• Non-symmetrical, multi-angled enclosure
• M10 and M6 rigging points
• Pole mount socket
• Black or white finish

APPLICATIONS

• Corporate and A/V
• TV and broadcast
• Stage monitoring
• Near fill and front fill
• Live music venues
• Nightclubs and bars
• House of Worship
