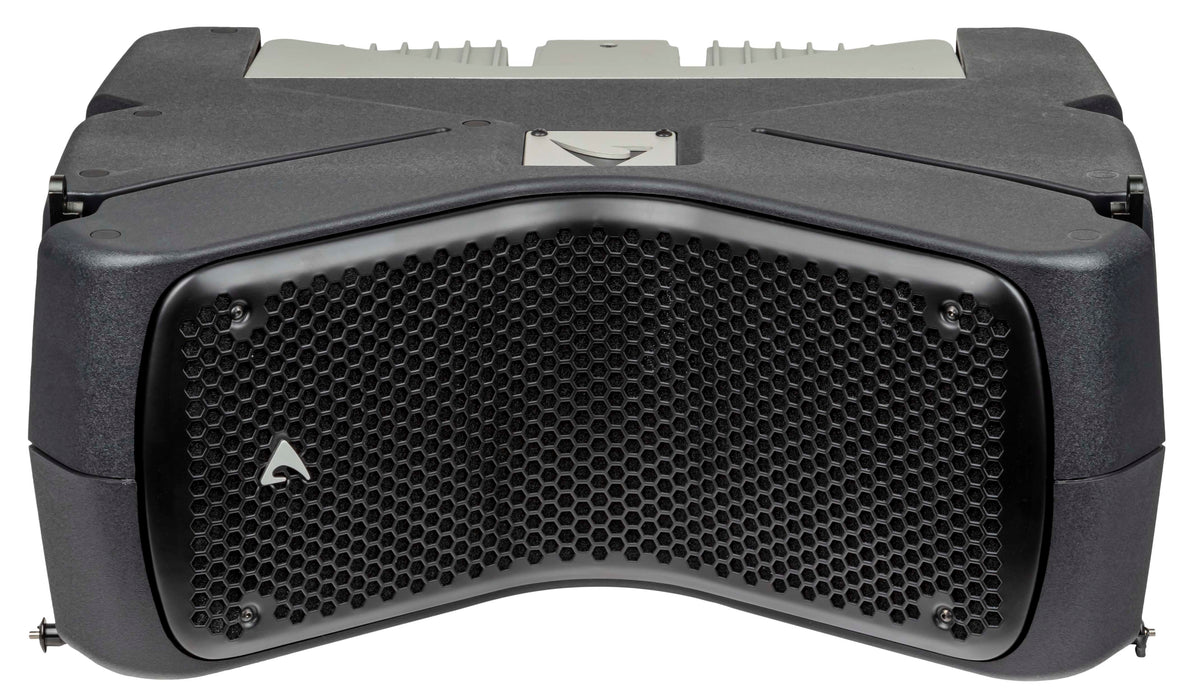

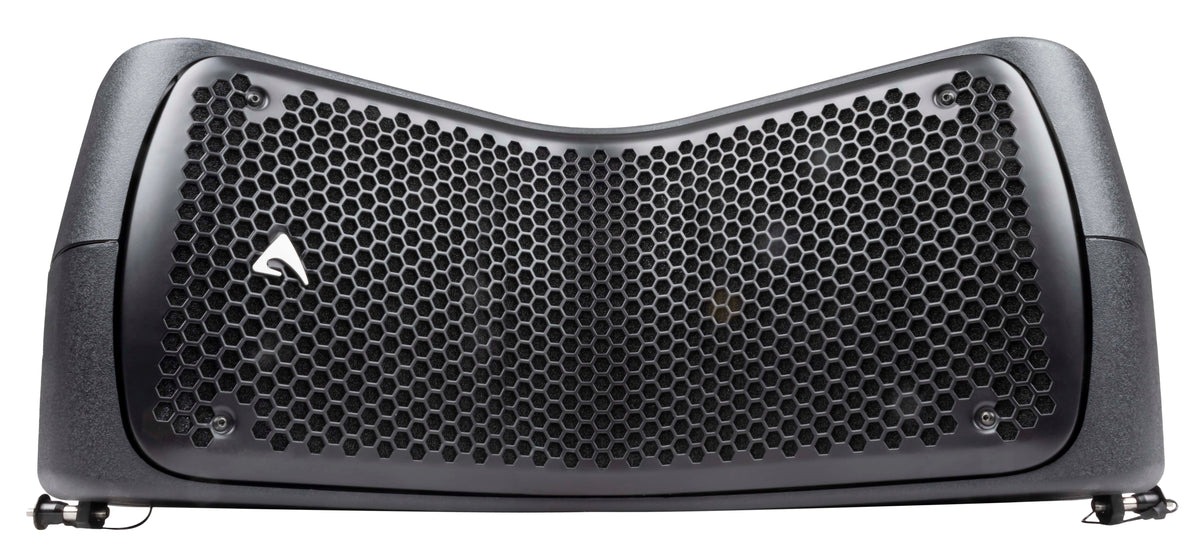

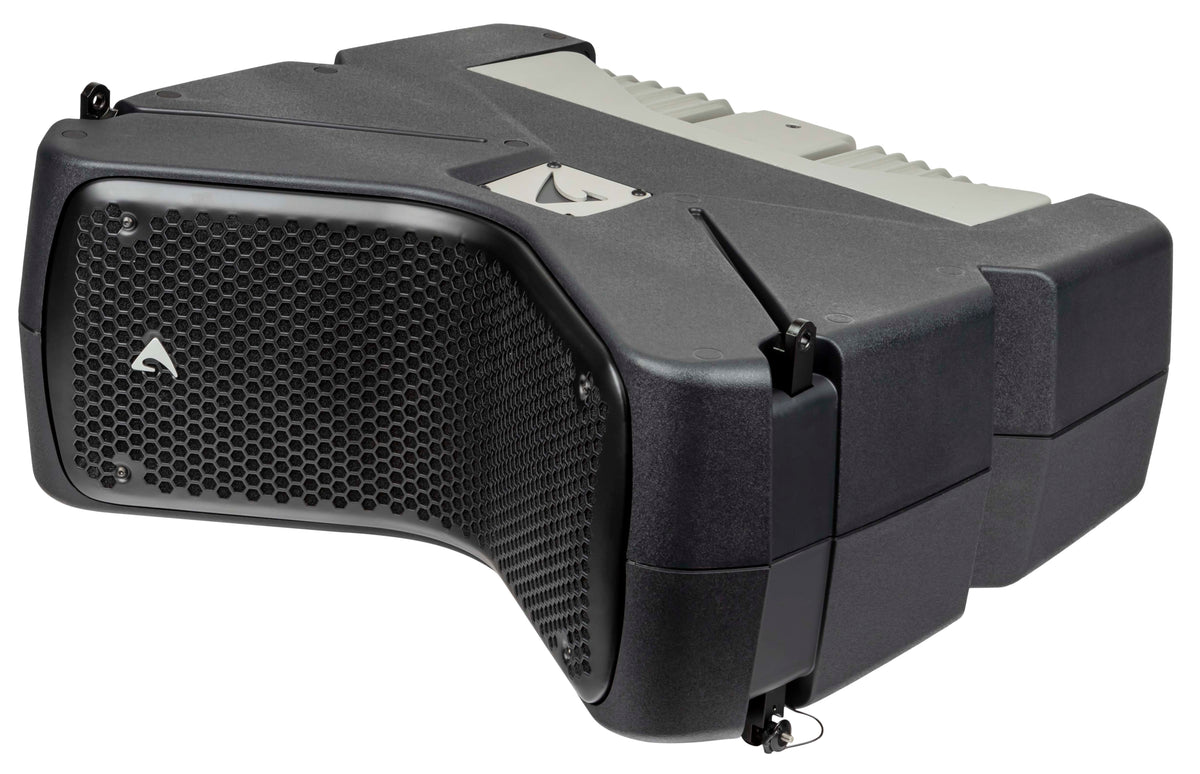

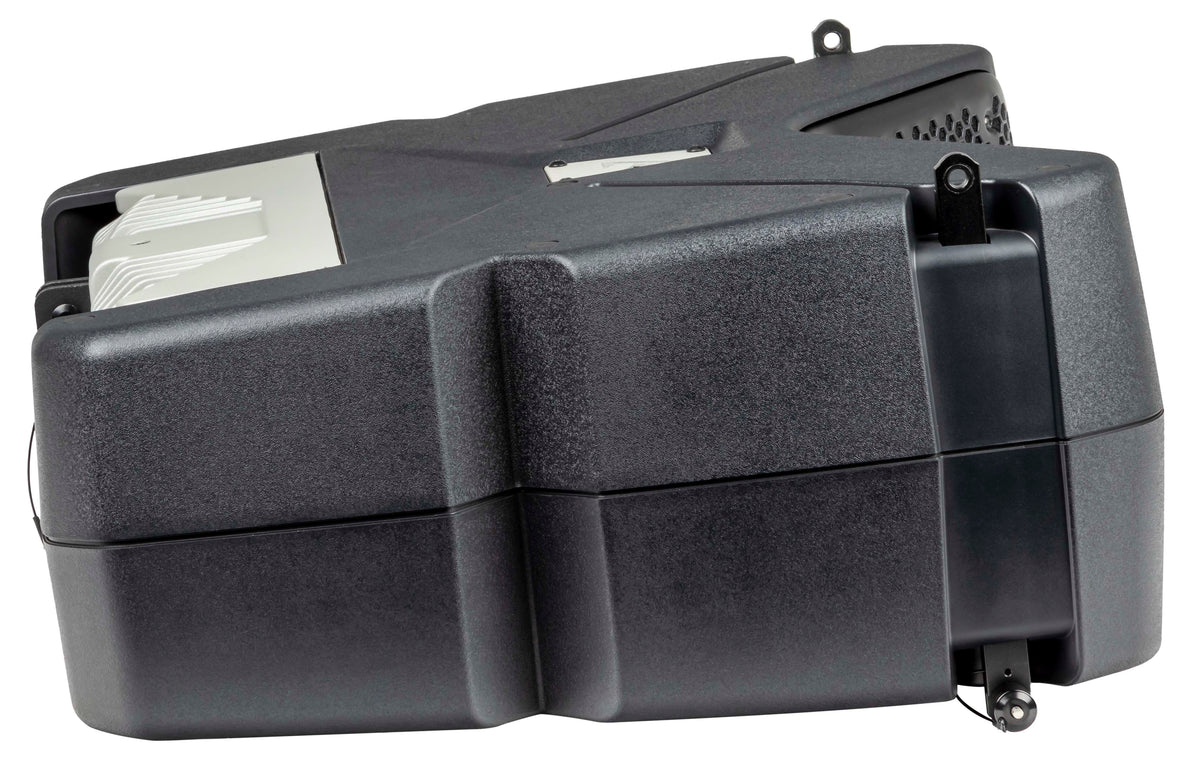

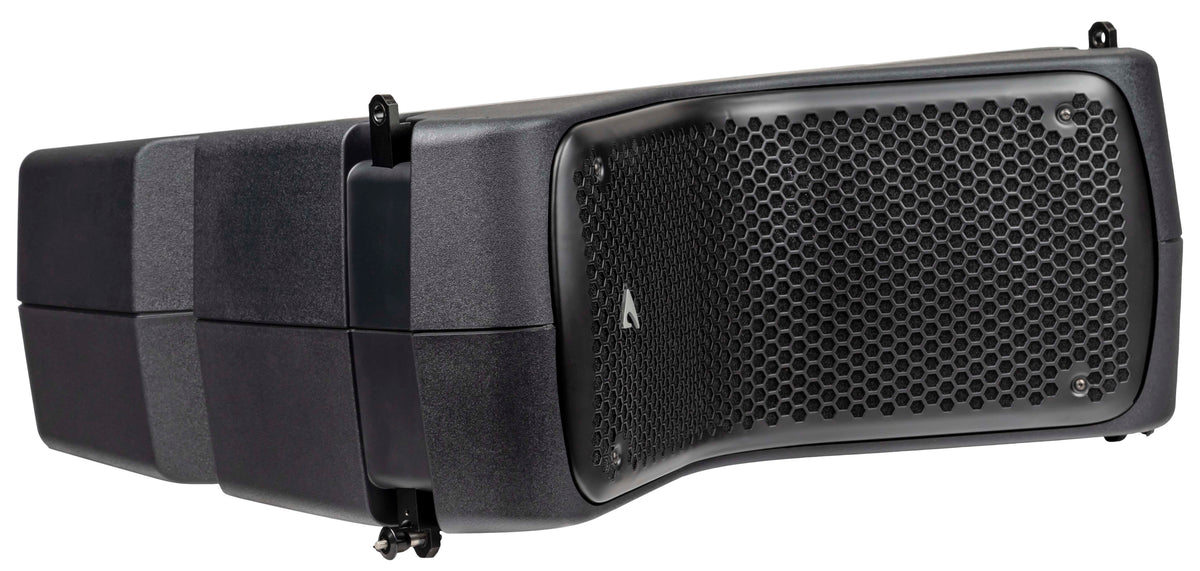

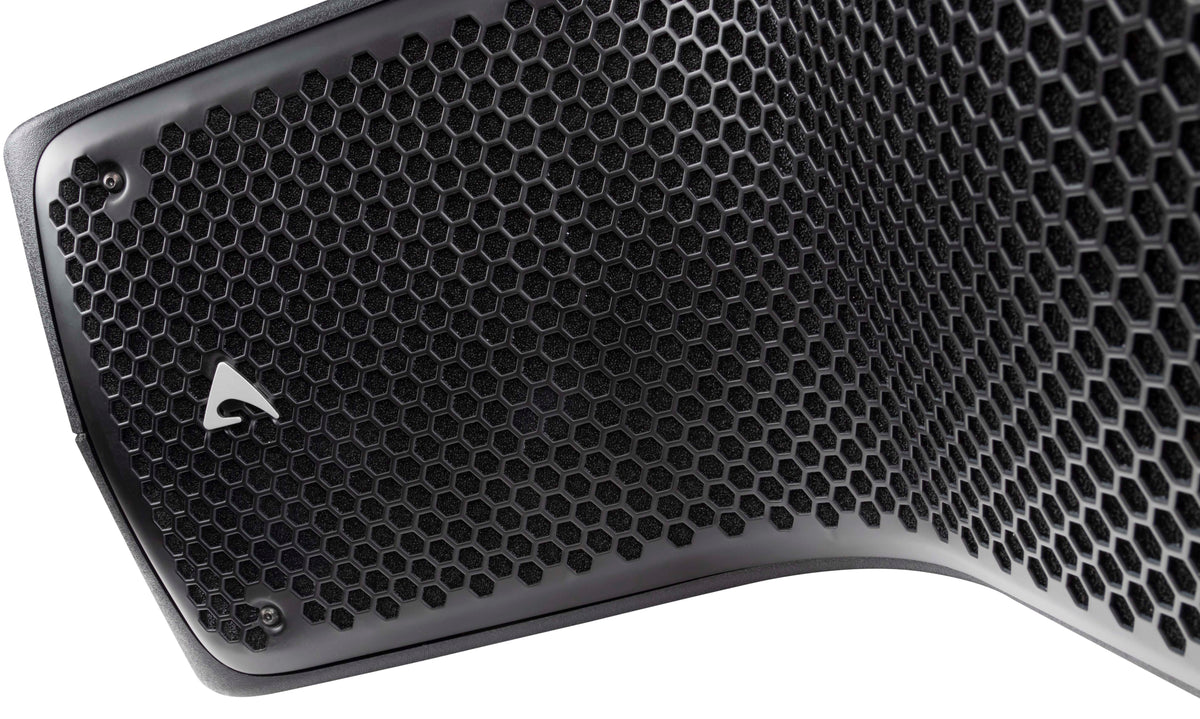

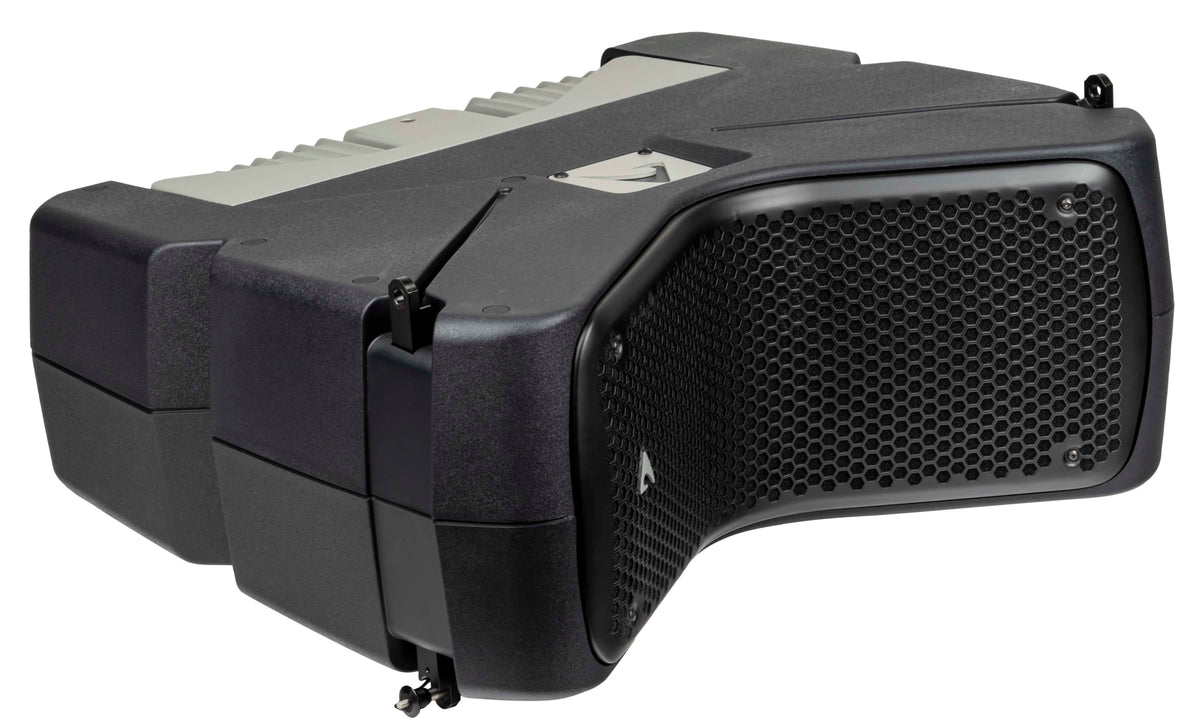

AX800A NEO Dual 8" (203mm), High Output, Powered, CORE Processed, Two-Way Line Array Element
The AX800A NEO is a compact lightweight powered line array element that combines superior sound quality with flexibility and ease of use in an organically styled molded enclosure. It is designed for a wide range of general purpose indoor and outdoor live sound applications and...
Where to buy
Sold through authorized Proel North America dealers in the USA and Canada.
Details
About this product.
The AX800A NEO is a compact lightweight powered line array element that combines superior sound quality with flexibility and ease of use in an organically styled molded enclosure. It is designed for a wide range of general purpose indoor and outdoor live sound applications and many types of fixed installations. To fully extend low frequency response the AX800A NEO is designed to be used with the complementary SW1800A subwoofer, a compact dual 18” hybrid manifolded bandpass design, in a recommended 4:1 ratio.
Specifications
The details that matter.
System
- System’s Acoustic Principle
- Line Array Element
Short Transmission Line LF Back Loading
Acoustic Transmission Line HF Waveguide - Frequency Response (±3dB)
- 85 Hz – 16.8kHz (Processed)
- Horizontal/ Vertical Coverage Angle
- 100° x 10° (-6dB)
- Maximum Peak SPL @ 1m
- 133.5 dB
Transducers
- LF
- Two 8”(200mm) neodymium woofers, 2” (38mm) voice coil, 8Ω each, paralleled
- HF
- One 1.4” neodymium driver, 2.5” (64mm) edgewound voice coil, titanium diaphragm, 8Ω
Electrical
- Input Impedance
- 20 kΩ balanced, 10 kΩ unbalanced
- Input Sensitivity
- +4dBu / 1.25 V
- Signal Processing
- CORE2 processing, 40bit floating point SHARC DSP, 24 bit AD/DA converters
- Direct access Controls
- 4 Presets (Standard/Long Throw/Down Fill-Single Box, User), Network Termination, GND Link
- Remote Controls
- PRONET AX control software
- Network Protocol
- CANBUS
- Amplifier Type
- Class D with SMPS
- Output Power
- 800W + 400W
- Mains Voltage Range (Vac)
- 100 - 240V 50/60Hz with PFC
- IN / OUT Connectors
- Neutrik XLR-M / XLR-F
- IN / OUT Network Connectors
- ETHERCON®(NE8FAV)
- Mains Connector
- PowerCon® (NAC3MPA)
- Mains Link Connector
- PowerCon® (NAC3MPB)
- Cooling
- Variable speed DC fan
Enclosure & Construction
- Dimensions (W x H x D)
- 23.6 in (600 mm) x 10.5 in (265.5 mm) x 20.3 in (516 mm)
- Enclosure Material
- Polypropylene
- Rigging System
- Front Suspension
- Aluminum Fast Link structure
- Back Suspension
- High Strength Steel with ¼ Fast Pin
- Net Weight
- 49.6 lb (22.5 kg)
Warranty
- Standard
- 2 years from the date of purchase at an authorized Proel North America dealer
- Details
- Terms, registration links and claims: proelnorthamerica.com/pages/support
-
