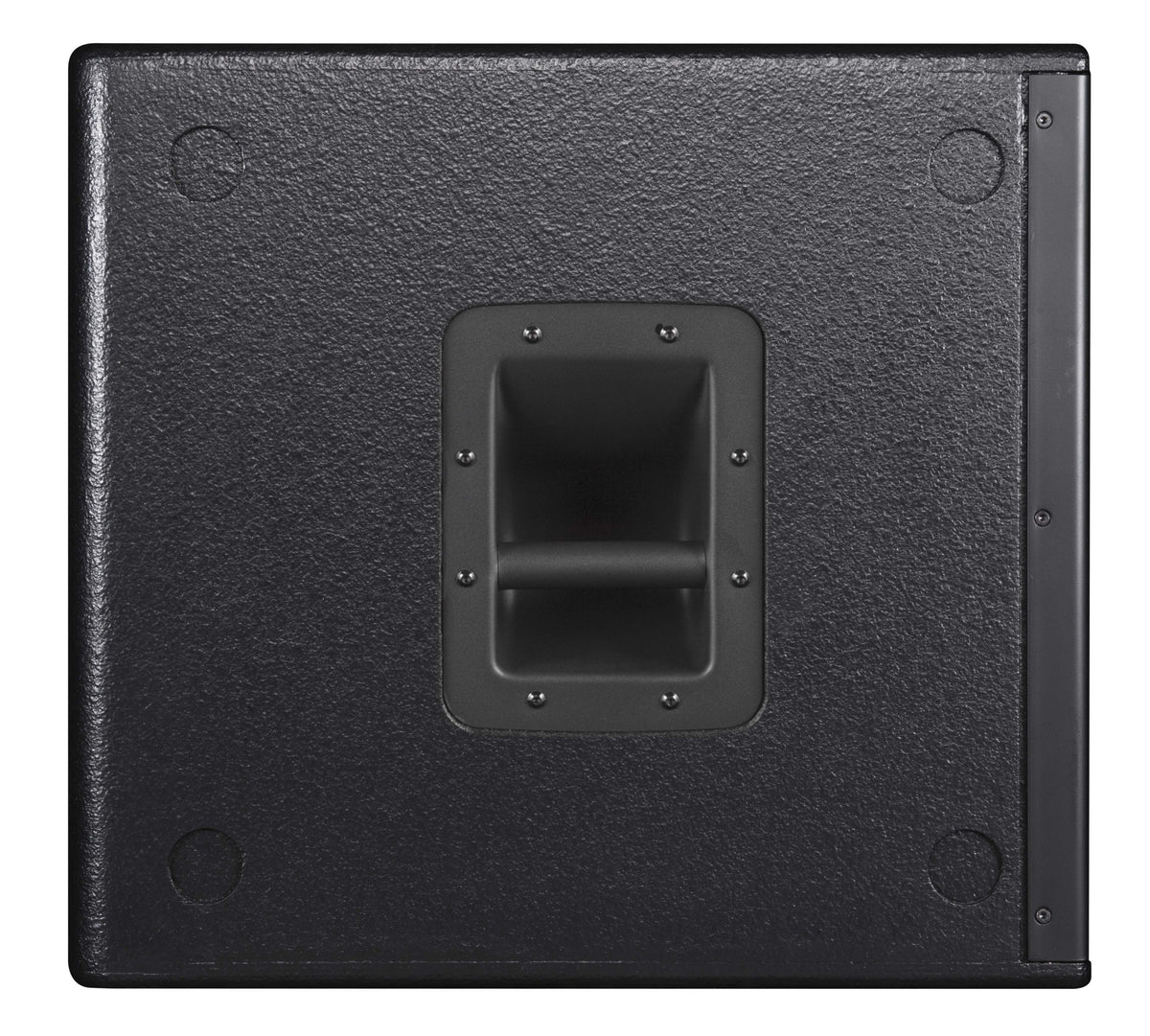

  • Axiom SW18P 18" Passive, Direct Radiating Subwoofer – view 3

Axiom · Stage Equipment

18" Passive, Direct Radiating Subwoofer

Item SW18P · Made in Italy

A compact passive 18 in subwoofer with a 4 in voice coil and water-repellent cone, built to extend Axiom ED Series loudspeakers.

Where to Buy

Axiom systems are specified, sold and installed by authorized integrators and installers in the USA and Canada.

Request a System Quote
Find an integrator or installer near you
Dealer? Sign in to see your cost and order.

Details

About this product.

Design

The SW18P extends the low end of select ED Series point source loudspeakers. It suits live music venues, nightclubs, bars, houses of worship and corporate A/V.

Driver

The high-power 18 in (460 mm) driver reaches up to 30 mm peak-to-peak excursion. A high-stiffness Double Silicon Spider keeps travel linear at high output. The high-strength (BL²/Re) motor uses an inner flux demodulating ring for symmetry and excursion control.

The 4 in (100 mm) copper voice coil is wound in two layers, inside and outside the former. This doubles the cooled surface and improves long-term thermal capacity. The cone is high-stiffness, glass-fiber-reinforced paper with an invisible water-repellent treatment.

Cabinet

The 15 mm phenolic birch plywood cabinet has an M20 pole mount socket for two-way ED Series speakers. Recessed handles, polyurethane wheels, stacking feet and recesses aid transport and stacking. Two Neutrik speakON NL4 connectors provide input and link.

  • High-power compact subwoofer
  • 18 in woofer, 4 in voice coil
  • Water-repellent cone
  • Heavy-duty wheels
  • Pole mount socket

Specifications

The details that matter.

Manuals & Downloads

Version
Passive (needs an external amplifier). The P in the model number means Passive; the active version is SW18A.

System

System’s Acoustic Principle
Direct radiation, vented
Frequency Response (±3dB)
36 Hz - 100 Hz (Processed)
Nominal Impedance
8 Ohm
Sensitivity 2.83V
98 dB SPL @ 3.3 ft (1m)
Maximum (peak) Output
132 dB SPL @ 3.3 ft (1m)

Transducers

Type
18", 4" VC
Cone
High stiffness, water repellent, glass fiber reinforced diaphragm
Voice Coil Type
Flux Demodulating Ring
Suspension
Double Centering Spider

Input Connections

Connector Type
Neutrik® Speakon® NL4 x 2

Power Handling

Continuous AES Pink Noise Power
1200 W
Program Power
2400 W
Peak Power
7000 W
Power Compression
@ -10dB Power (180 W)
0.7 dB
@ -3dB Power (900 W)
1.5 dB
@ 0dB Power (1800 W)
2.2 dB

Enclosure & Construction

Width
25.6 in (650 mm)
Height
19.7 in (500 mm)
Depth
22.2 in (564 mm)
Depth including wheels
26.5 in (673 mm)
Enclosure Material
0.59 in (15mm), reinforced phenolic birch
Paint
High resistance, water based paint
Wheels
0.16 × 3.1 in (4 x 80mm) Polyurethane Wheels
Net Weight
88.2 lb (40 kg)

Warranty

Standard
2 years from the date of purchase at an authorized Proel North America dealer
Extended
2 more years (4 in total) when registered on proel.com within 6 months of purchase
